Product Description

Product Attributes Supply Ability & Additional Information Packaging & Delivery Other information Product Description

Product Attributes

Model No.: TBAC-DDG-55

Brand: Ya Lian

Origin: China

Certification: ISO9001\CE\AS2047

Warranty Service: More Than 5 Years

After-sales Service: Online Technical Support, Return And Replacement

Engineering Solution Capability: Total Solution For Projects

Application Scenario: Hotel, Villa, Hospital, Mall, School, Hall, Supermarket, Bathroom, Other

Design Style: Modern, Minimalist, European, Postmodern, Southwestern, French

Place Of Origin: China

Border Material: Aluminum Alloy

Switch Way: Swing

Characteristic: Folding Screen, Magnetic Screen

Open Mode: Horizontal

Mesh Material: Nylon

Additional Functionality: Anti-Theft, Dust-Proof, Heat Insulation, Insect Control, Invisible, Soundproof, Windproof

Material: Aluminum, Aluminum Alloy

Product Name: Aluminum Casement Window/Aluminum Thermal Break Casement Window

Color: Customized Colors

Size: Customized Size

Glass: Single\double\tempering\coating\low-e

Surface Treatment: Power Coating

Profile Thickness: 1.4mm

Certificates: ISO9001\CE\AS2047

Main Market: American\Australian\New Zealand\Canada

MOQ: 3 square meter

Delivery Time: 25-35 Days

Supply Ability & Additional Information

Packaging: 4-Layers Protection Packaging

Productivity: 500000 square meters/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: Annual export of 500000 square meters of windows and doors

Certificate: ISO9001\CE\AS2047

HS Code: 7610100000

Port: Nansha Port,Shekou Port,Yantian Port

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery

Selling Units:: Square Meter

Package Type:: 4-Layers Protection Packaging

Picture Example:

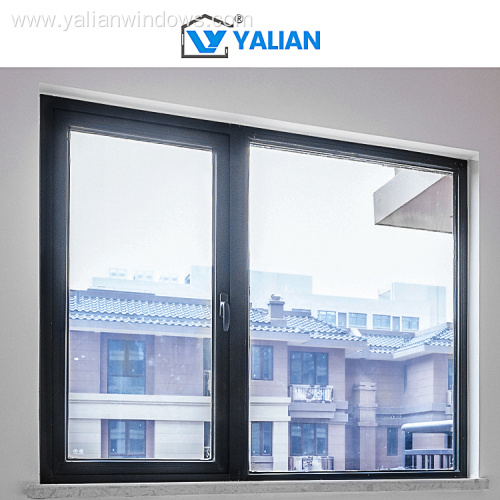

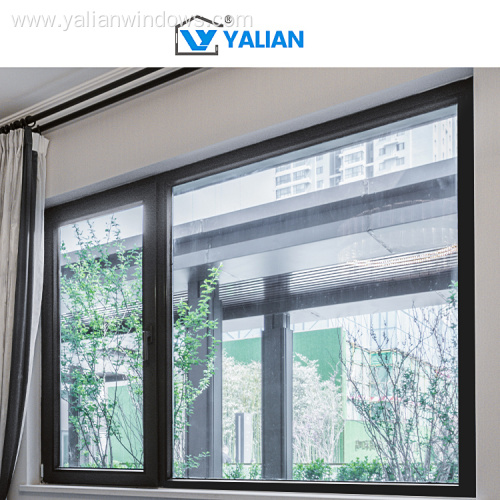

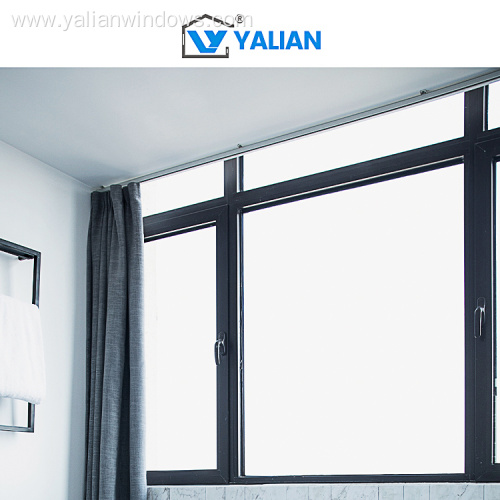

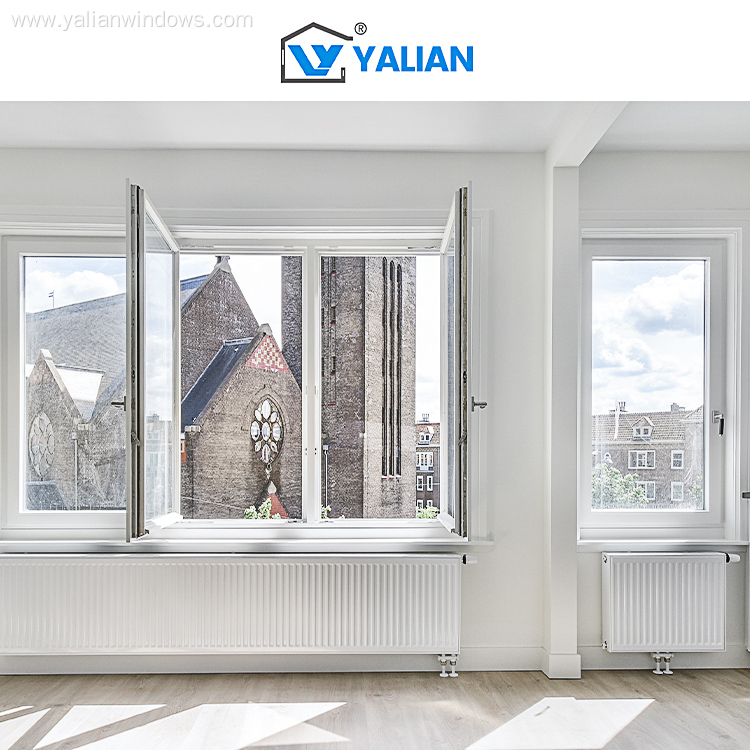

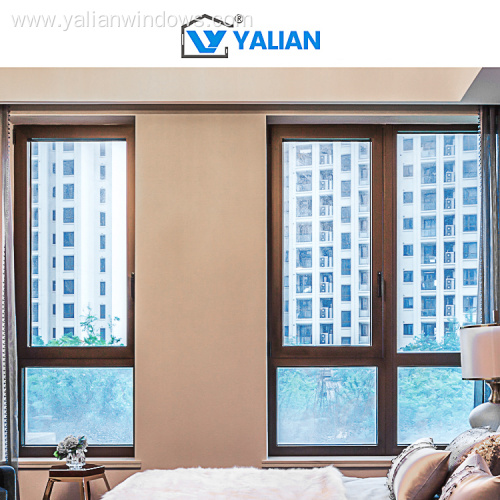

Thermal Break Casement Windows





Product Description

The 55 series thermally-insulated double-glazed Aluminum Alloy Casement Window is a mid-to-high-end Casement Window product that focuses on heat insulation and sound insulation performance. It adopts 55mm thermally-insulated aluminum alloy profiles and hollow double-layer Glass design, and is suitable for residential and commercial buildings with high requirements for energy saving and sound insulation. The thermally-insulated structure of this product effectively blocks the cold and hot bridges, and the double-layer hollow glass enhances the sound insulation and heat insulation effects, making it an ideal choice for urban residential and commercial spaces.

1.Product structure and material

①Series model: 55 series

②Structure type: Casement window, optional single or double leaf design, supports inward or outward opening

③Material: High-quality thermal insulation aluminum alloy, profile thickness is 1.4mm, surface is anodized or electrostatically sprayed, corrosion-resistant and durable

④Thermal Break structure: The aluminum alloy is separated by insulation strips in the middle, and the thermal insulation design effectively prevents heat conduction and enhances thermal insulation performance

⑤Glass configuration: Hollow double-layer glass, users can choose tempered or Low-E glass to increase sound insulation and heat insulation effects and ensure safety

2.Applicable scenarios

①Urban residences: Suitable for bedrooms, living rooms and other living spaces that require quietness and energy saving

②Commercial buildings: Widely used in office buildings, hotels and high-end shops, providing soundproof, energy-saving and high-quality office or commercial environments

③High-rise buildings: Suitable for high-rise buildings and coastal areas, providing high-performance windows with strong wind pressure resistance

3.Installation and Maintenance

①Convenient installation: The window design is reasonable, the structure is stable, and the installation is convenient, which is suitable for a variety of building structures.

②Easy to clean: The aluminum alloy surface is smooth and corrosion-resistant, and daily cleaning is convenient. Just wipe it with a soft cloth and mild detergent.

③Durable: High-quality thermal insulation aluminum alloy and tempered glass structure, long-term use to maintain beauty and practicality

The 55 series thermally insulated double-glazed aluminum alloy casement window is a high-performance, cost-effective casement window product suitable for users who have high requirements for heat insulation, sound insulation, and energy saving. Its excellent sound insulation, heat insulation, and waterproof performance make it an ideal choice for urban residences, commercial buildings, and high-rise buildings. At the same time, a variety of accessories can meet the personalized needs of different users.

The file is encrypted. Please fill in the following information to continue accessing it

Aluminum Alloy Casement Windows Swing Horizontal Opening
